Product Description

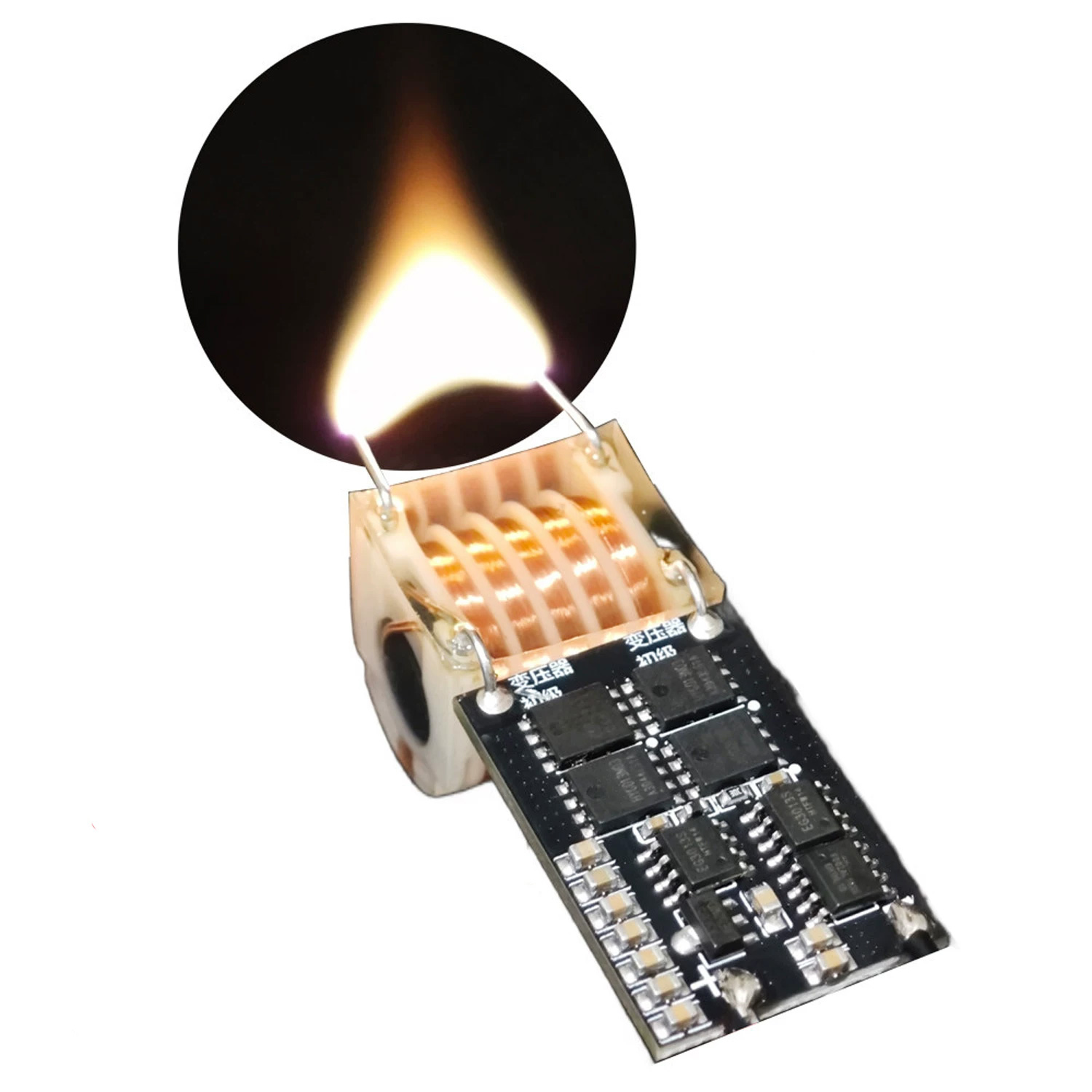

80W High Voltage Arc Ignition Module 10kV-20kV Spark Generator

The high voltage arc ignition module is a compact and powerful high-voltage generator designed for DIY electronics projects, experimental applications and custom ignition systems.

With an output voltage of 10kV-20kV AC, this module delivers a stable and reliable arc ignition performance. The built-in automatic arc scanning function allows the module to start the arc without manual triggering, providing a faster and more convenient operation experience.

The compact transformer and driver board design make it easy to integrate into different electronic devices while maintaining excellent power output and thermal protection.

Key Features

High Voltage Output

Provides 10kV-20kV high voltage output for stable arc generation and reliable ignition performance.

Automatic Arc Starting

The dynamic arc scanning function automatically detects and starts the arc, eliminating the need for manual arc triggering.

Overheating Protection

Built-in MOSFET overheating protection helps prevent damage caused by excessive temperature and improves product reliability.

Compact Design

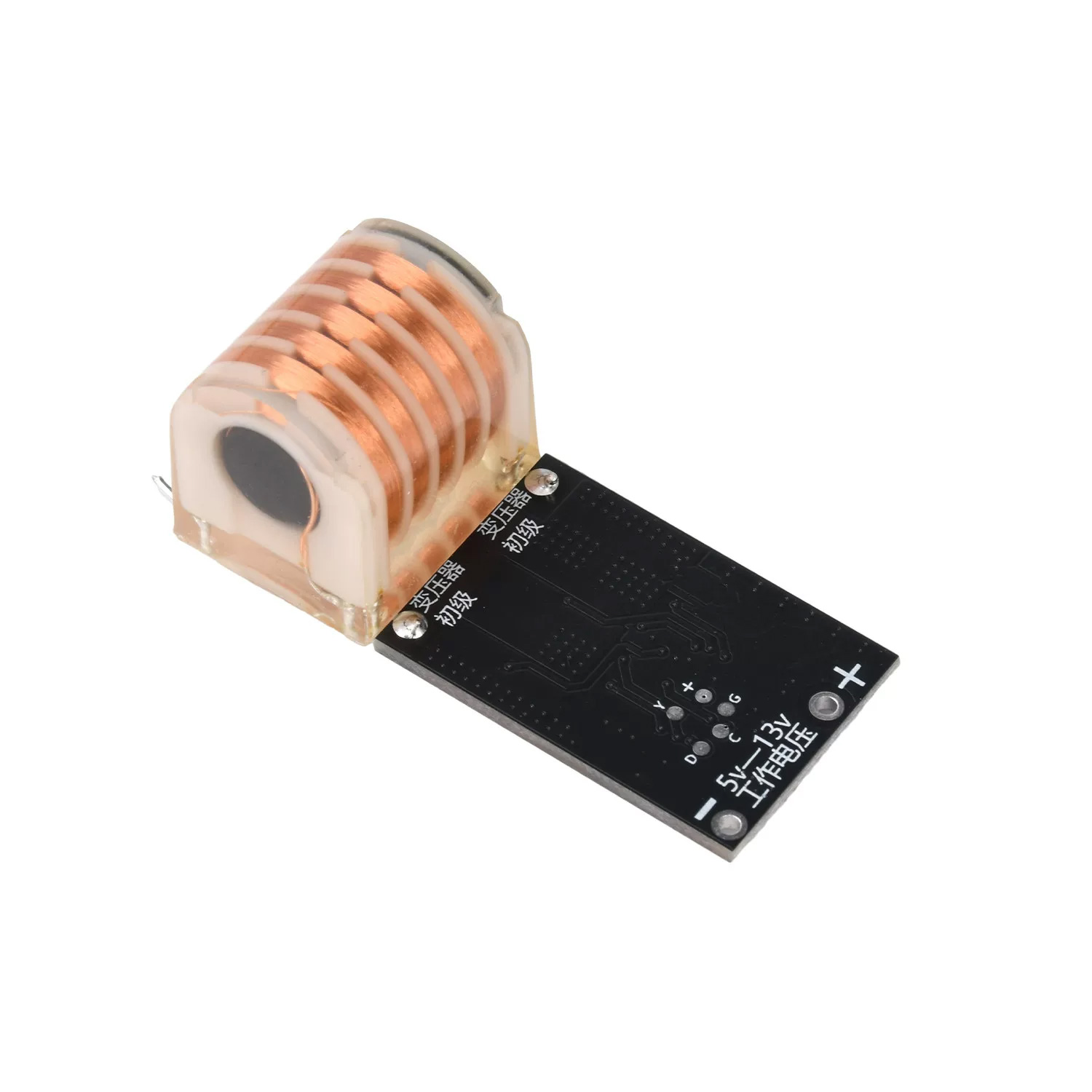

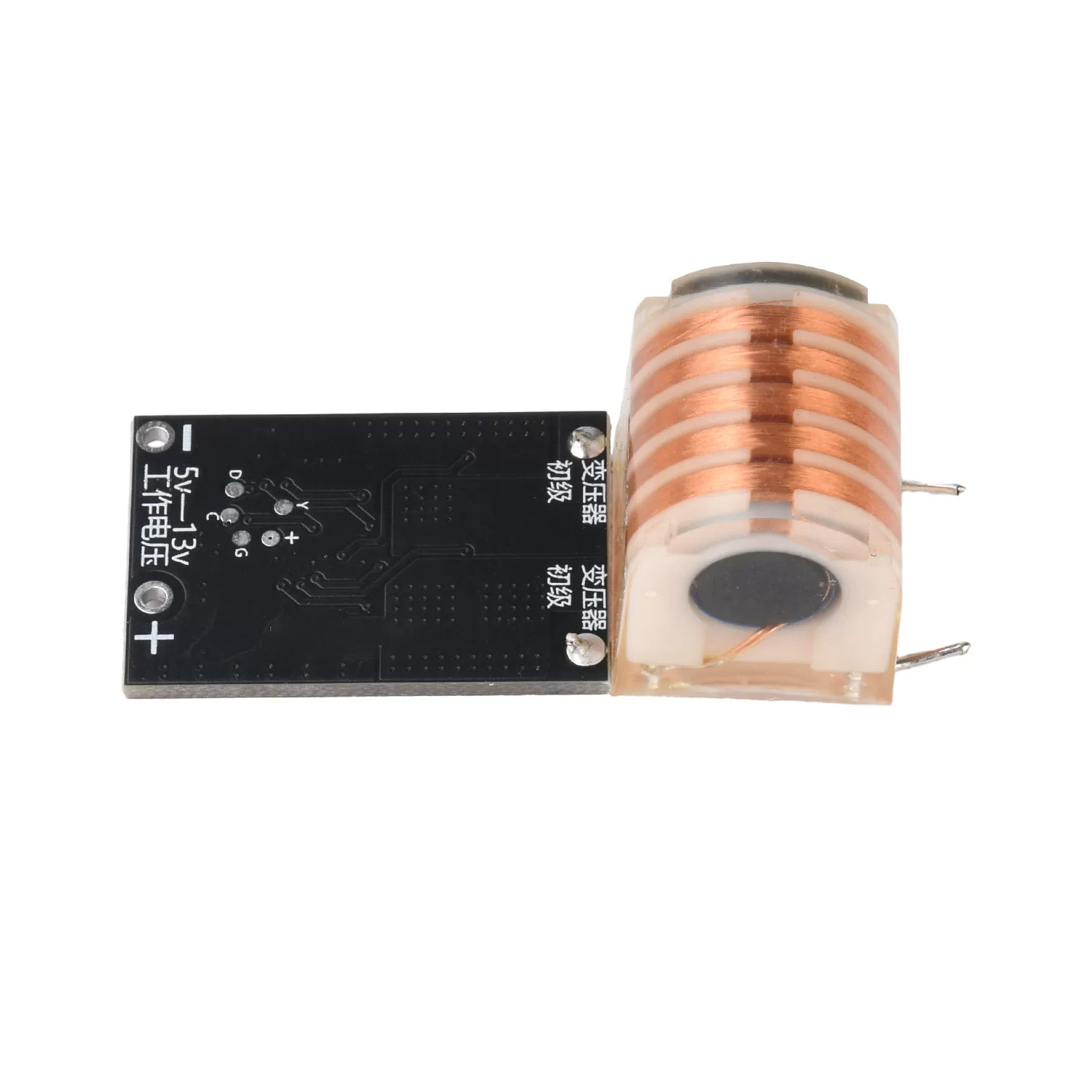

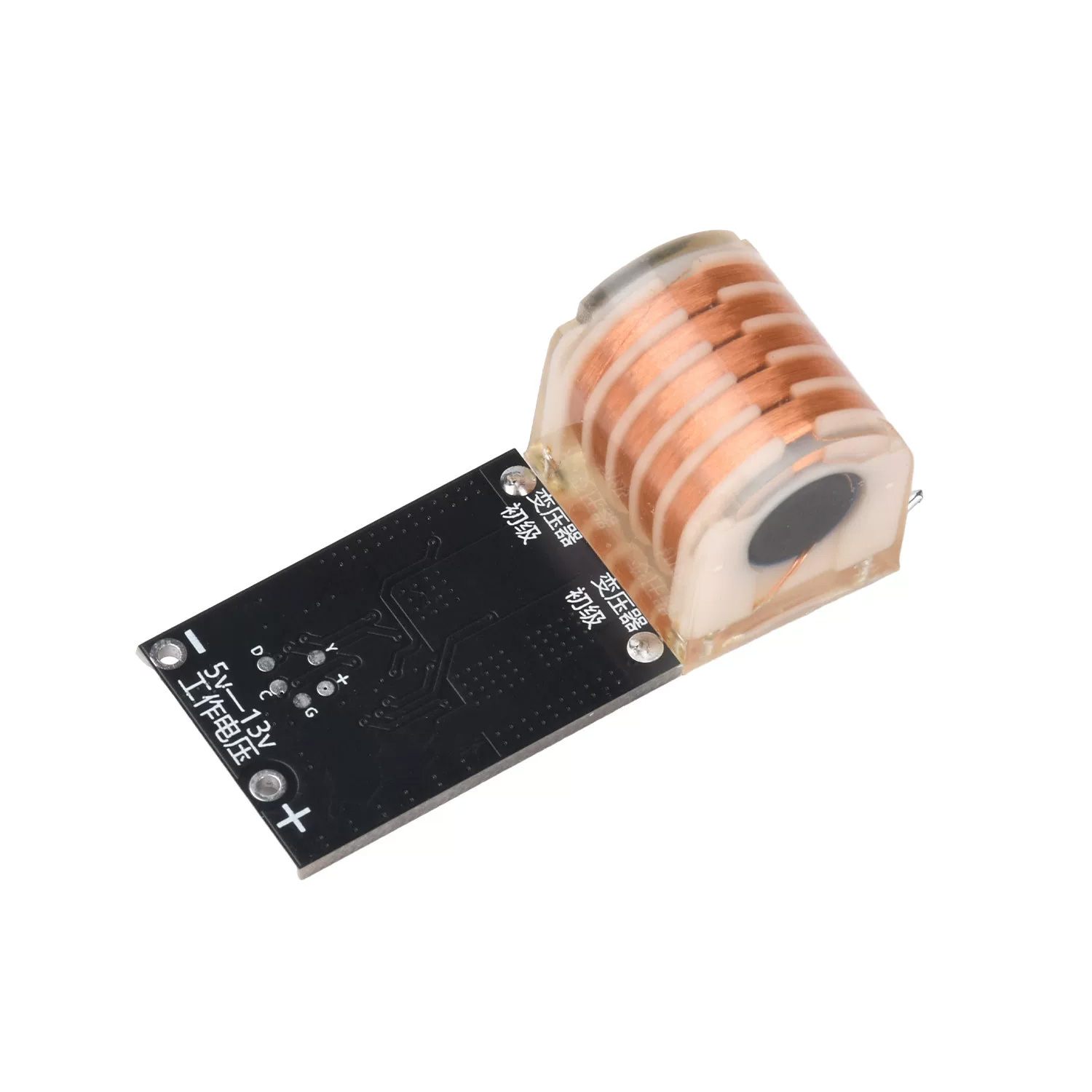

Small-size driver board and transformer design:

• Driver board size: 31 × 21 × 3mm
• Transformer size: 20.8 × 17.7 × 19mm

Easy to integrate into DIY projects and electronic devices.

Wide Application Range

Suitable for:

• DIY electronics projects
• Science experiments
• High voltage demonstrations
• Custom ignition systems
• Electronic prototypes
