IP6826 Wireless Charging Transmitter Module 5W-15W Fast Charging Board

Product Description

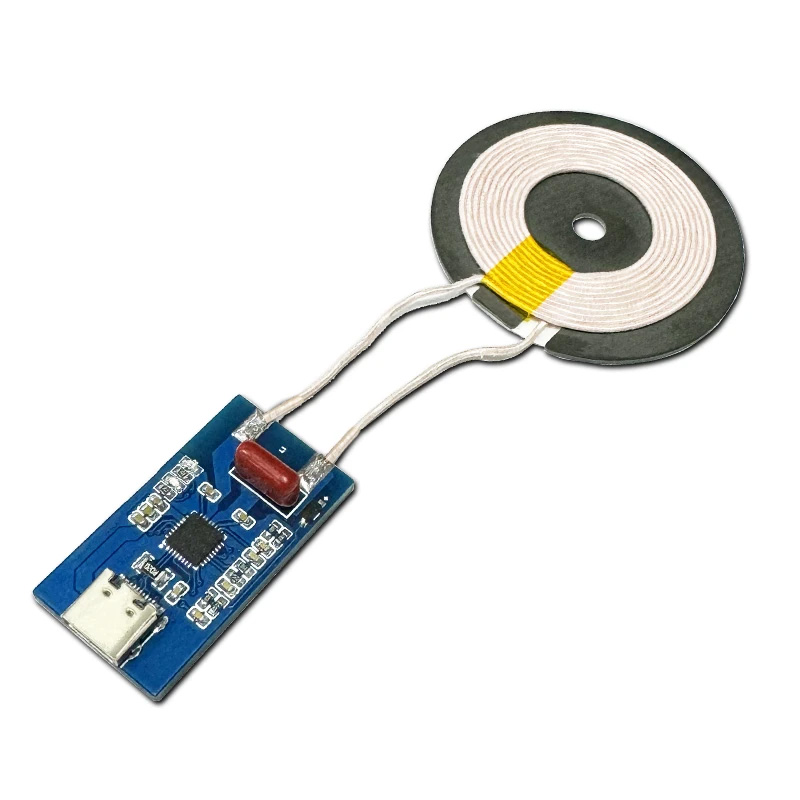

IP6826 Wireless Charging Transmitter Module

The IP6826 Wireless Charging Transmitter Module is a compact and efficient wireless charging solution designed for DIY projects, electronic product development, and OEM applications.

Powered by the IP6826 wireless charging control chip, this module integrates wireless charging management functions and supports multiple output power levels, including 5W, 7.5W, 10W, and 15W.

The module features a USB Type-C input interface with PD fast charging support, allowing flexible power input options. With its compact PCB design and external charging coil, it can be easily integrated into custom wireless charging products, smart devices, and embedded charging solutions.

Charging Compatibility

The module supports different charging power levels depending on smartphone brands and charging protocols:

• Apple iPhone: Supports up to 7.5W wireless charging for compatible iPhone models.
• Android smartphones: Supports 5W, 10W, and up to 15W wireless charging depending on device compatibility.

Input and Output Power

• 5V input: Supports 5W wireless charging output
• 9V input: Supports 5W / 7.5W / 10W output
• 12V input: Supports 5W / 7.5W / 10W / 15W output

Key Features

• Built-in IP6826 wireless charging controller
• Supports 5W / 7.5W / 10W / 15W output power
• Compatible with Apple and Android wireless charging devices

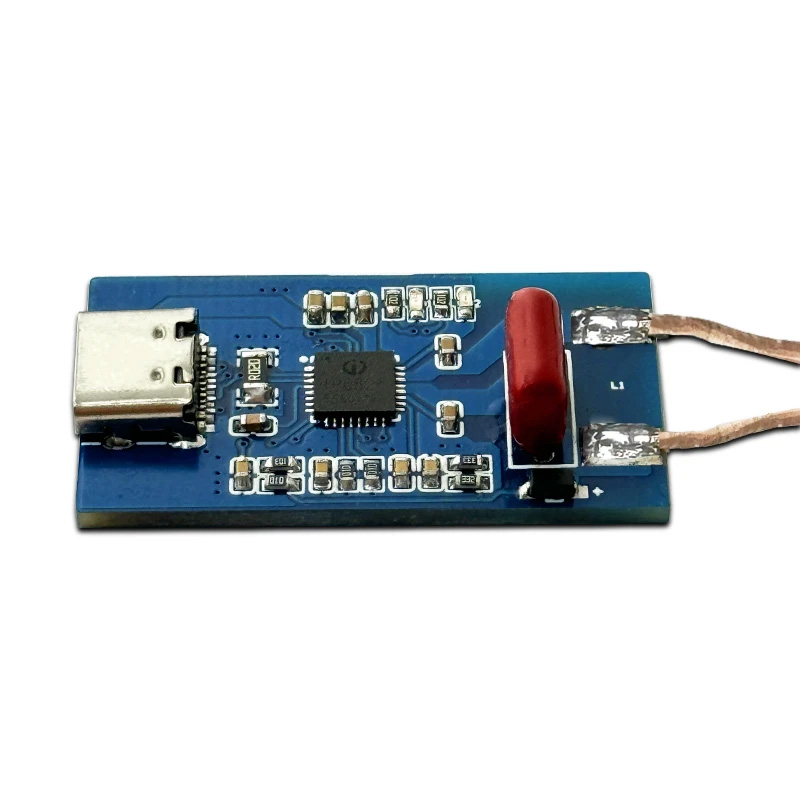

• USB Type-C input interface
• Supports PD fast charging input

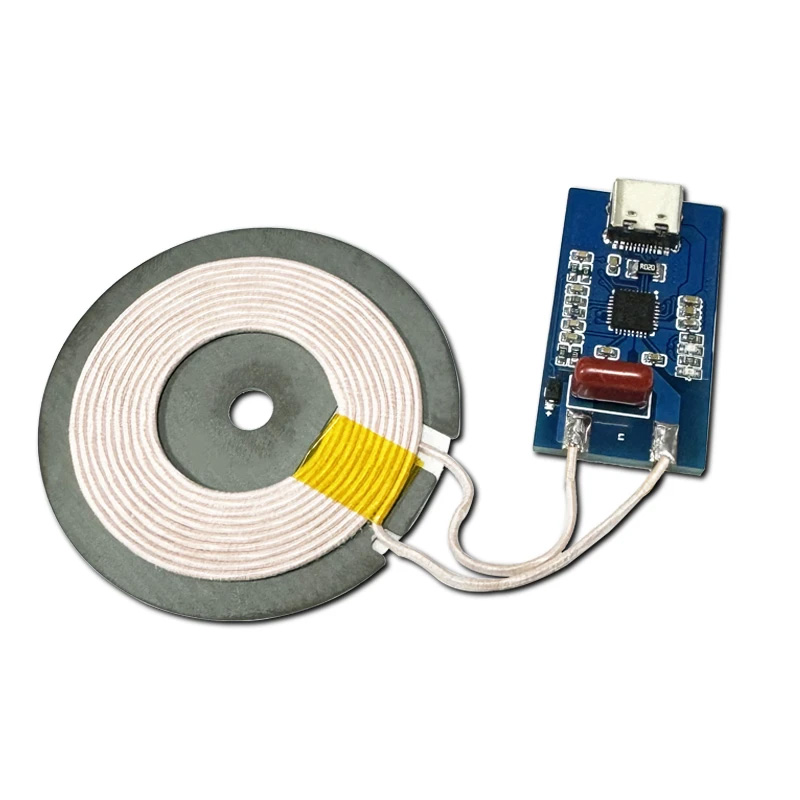

• External charging coil design for flexible installation

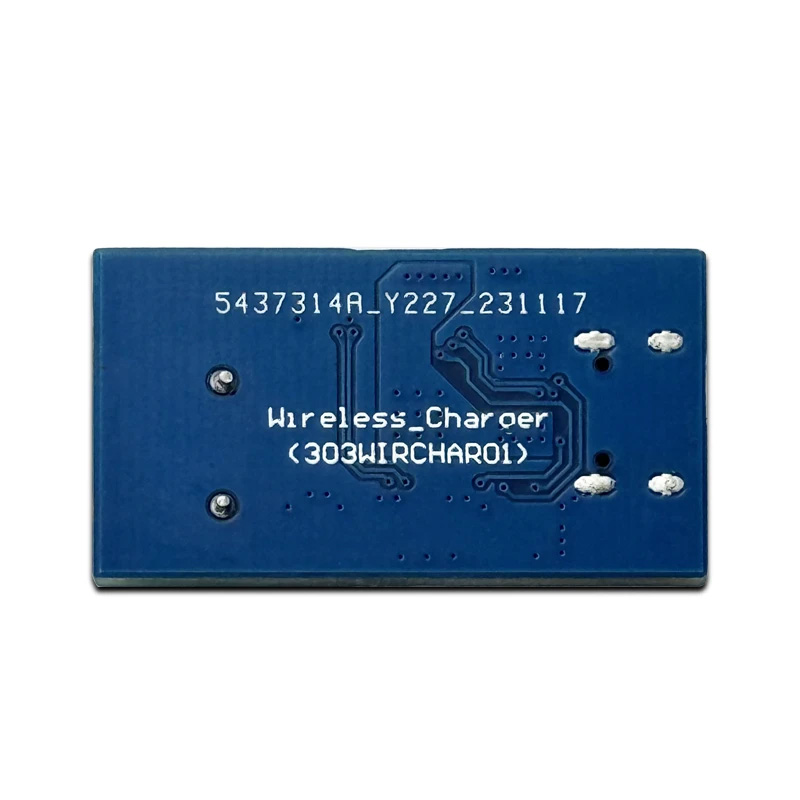

• Compact PCB size for easy integration
• Suitable for DIY, OEM and ODM wireless charging solutions

Applications

• DIY wireless charging stations
• Custom charging devices
• Smart furniture charging systems
• Portable electronic products
• IoT devices
• OEM wireless charging solutions

Specifications
