Mobile Bed

PhoneBed

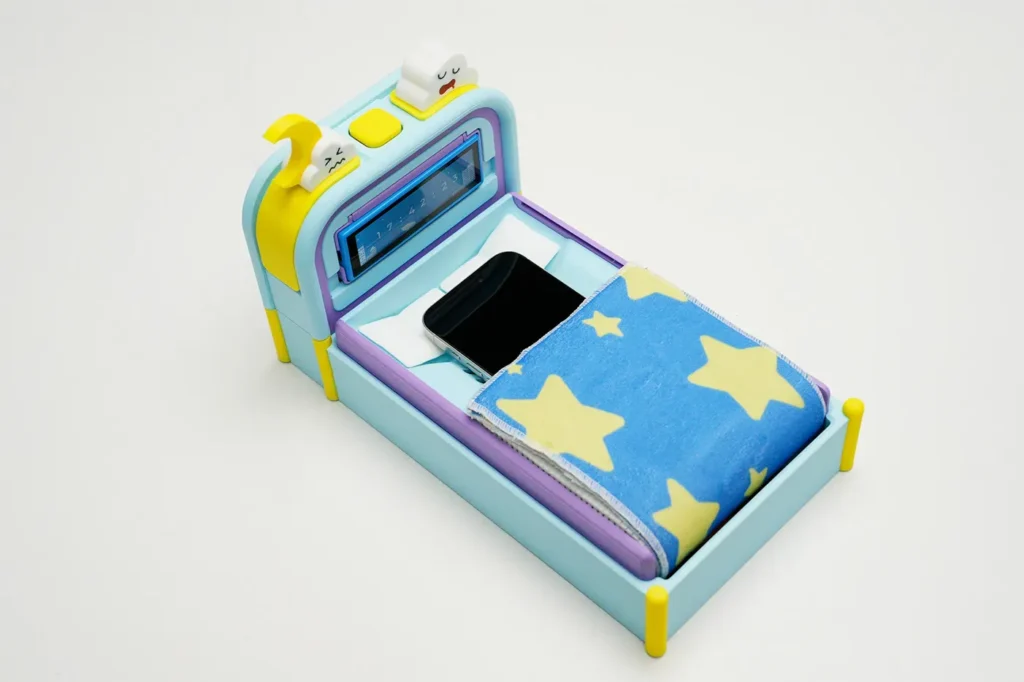

To keep the phone off the bed, we made a bed for it.

Feature Introduction #

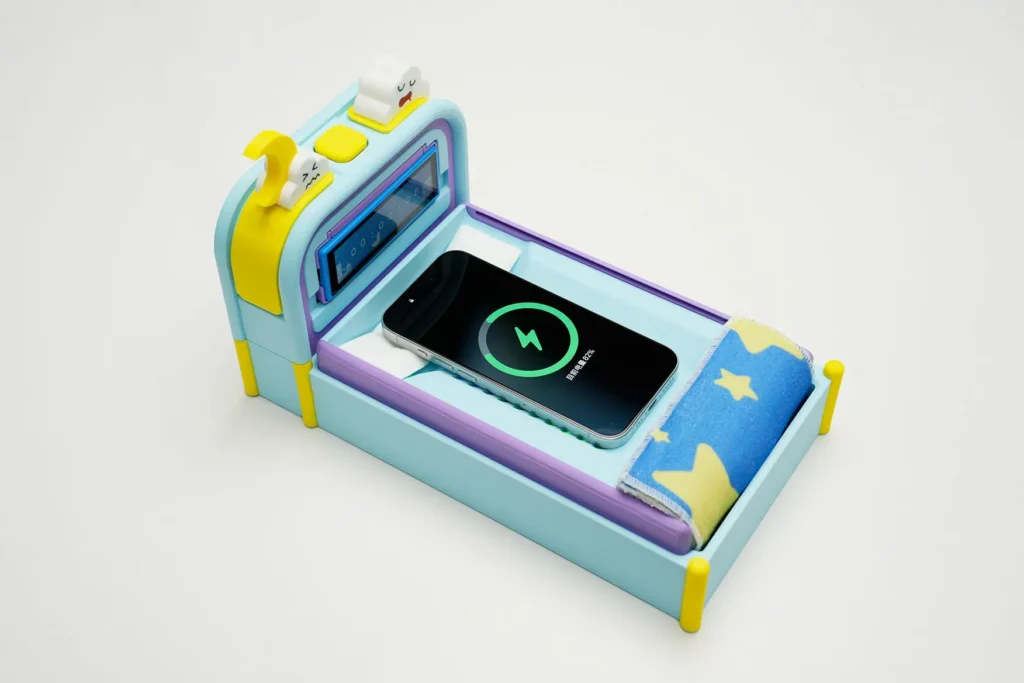

Place your phone in the phone bed and start charging it while “covering the blanket”. Only when the alarm clock rings can you “wake up” your phone.

Time page (default) #

The central area displays the current time

The pigeon below shows that it is foraging when the alarm is not turned on. When the alarm is turned on, the pigeon will return to its nest to rest

• Left click long press: Switch alarm configuration page

Alarm clock configuration page #

Set an alarm using buttons or touch

The left scroll wheel represents hours, the right scroll wheel represents minutes, and the two small arrows in between indicate which value is currently being modified using the button

The cloud on the left displays whether the alarm clock is turned on, and there will be a pop-up prompt when it is turned on

• Left click short press: select item time plus 1
• Double click with left button: Switch alarm clock, modify index (hour, minute, no modification)
• Left click long press: Switch time page
• Right click short press: Select item time minus 1
• Right click and double-click: Set alarm to turn on or off
• Right click and long press: Select item time plus 10

Alarm clock ringing page #

If you don’t turn it off, it will keep ringing

• Left click short press: turn off alarm clock
• Right click short press: turn off alarm clock

model #

MakerWorld

PCB： #

1-Adapter: FR-4 board, board thickness 1.6mm, double-layer board

Pay attention to the compression stroke matching of the spring needle (4mm between boards), and the needle diameter should be greater than 1.2mm. It is recommended to install it on the adapter board and tighten the screws, then use a soldering iron to solder the spring needle solder pad again to prevent poor contact

2-Controller: Board FR-4, board thickness 1.6mm, double-layer board

3-Button (button board): board FR-4, board thickness 1.6mm, double-layer board

4-MotorLimit: Plate FR-4, plate thickness 1.6mm, double-layer plate, welded GH1.25 4P connecting wire, pay attention to wire sequence

Other material list: #

	dosage	remark
Printed model	–	PLA，PETG
PCBA	4	Adapter board, control board, keypad, limit board
development board	1	Waveshare ESP32-S3-Touch-LCD-3.49B-EN (with removed back cover)
Wireless charging module	1	Wireless charging module, please note that the indicator light signal is 3.3v signal
GA12-N20 reduction motor	2	–
9015 cooling fan	2	–
Fan with one drag and two wires	1	–
IDC ribbon cable	1	1.27mm spacing, 26p (2 * 13p), 20cm long, in the same direction
GH1.25 double ended wire	2	2p， 10cm in length, in the same direction
GH1.25 single head wire	1	4p， 20cm in length
PH2.0 single head cable	2	2p， 40cm in length
PH2.0 single head cable	1	3p， 40cm in length
N52 circular neodymium iron boron magnet	25	Diameter 6mm, thickness 3mm
Inner hexagon M3 * 6mm	8	–
Inner hexagon M2.5 * 4mm	17	–
Inner hexagon M2.5 * 8mm	6	–
Inner hexagon M2.5 * 18mm	2	–

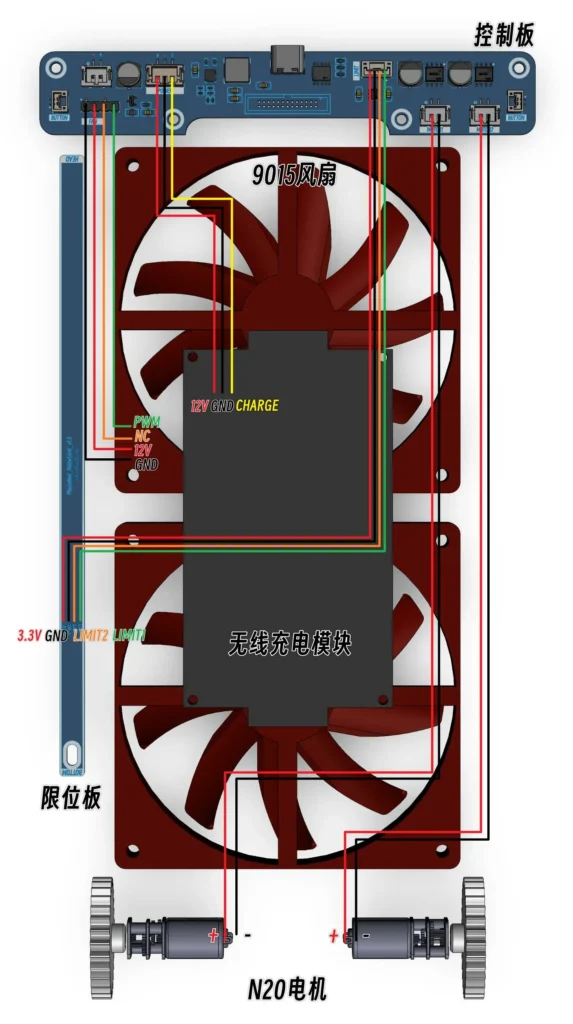

wiring #

Please use QC/PD charger to power the device.

Before installing the quilt, it is recommended to turn on the power and place the phone in the bed to make the motor work, in order to check if the motor rotation direction is correct.

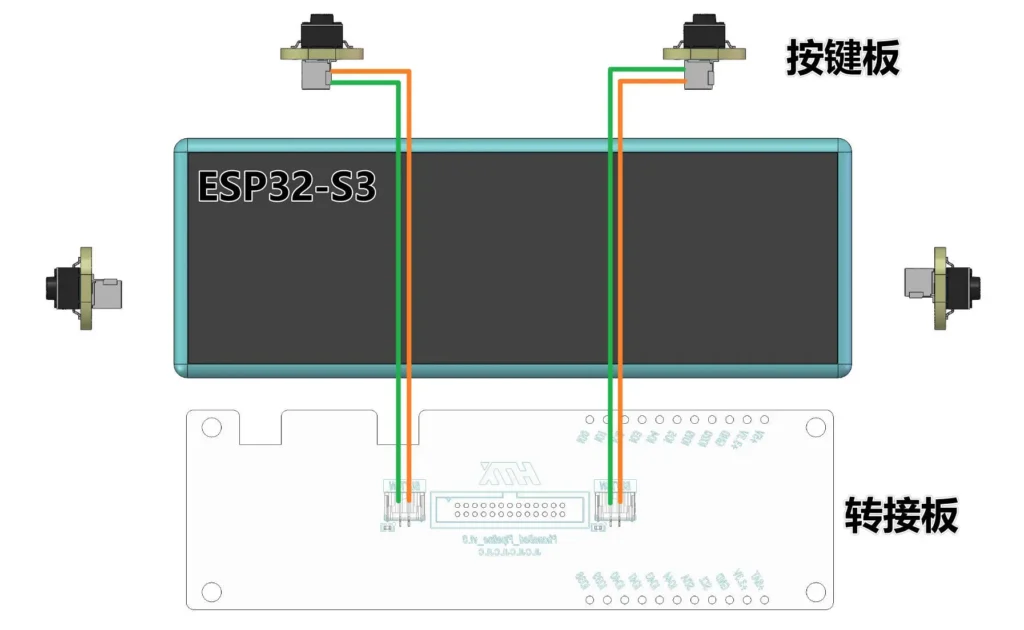

Four button board installation slots, choose 2 for installation. Facing the screen, there is a left button on the left and a right button on the right.

Note: The BUTTON interface functions corresponding to the upper and lower parts of the adapter board and control board are the same

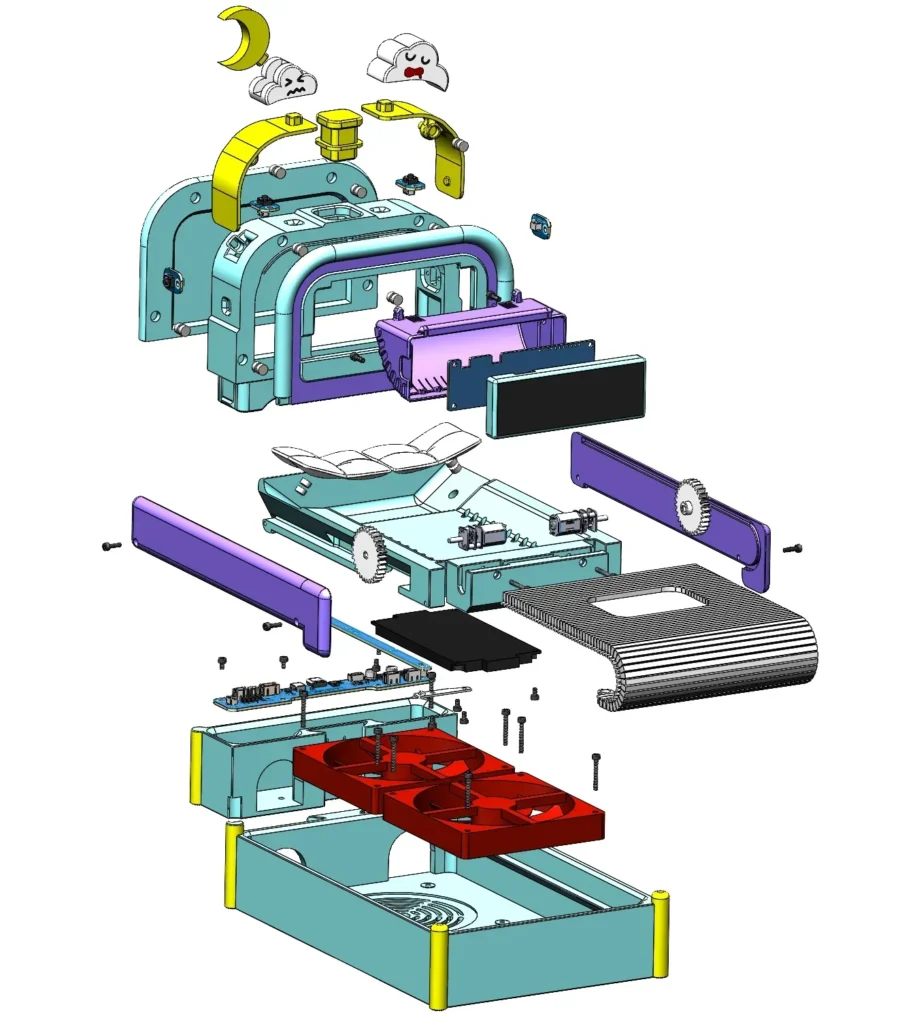

design drawing #

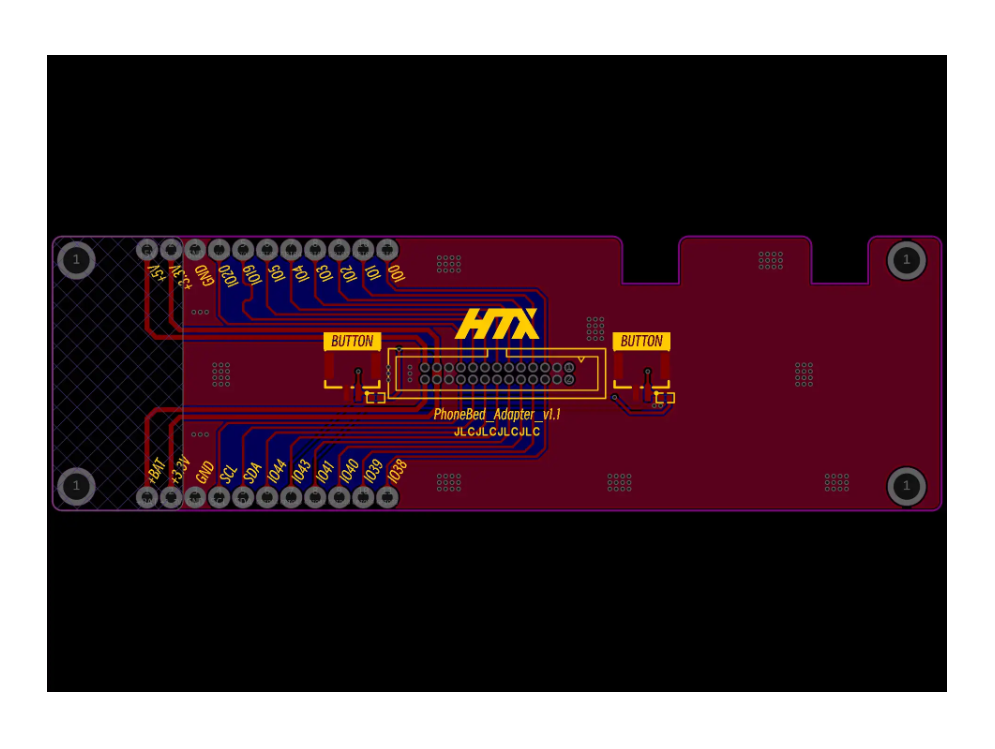

Adapter

Button

Controller

MotorLimit

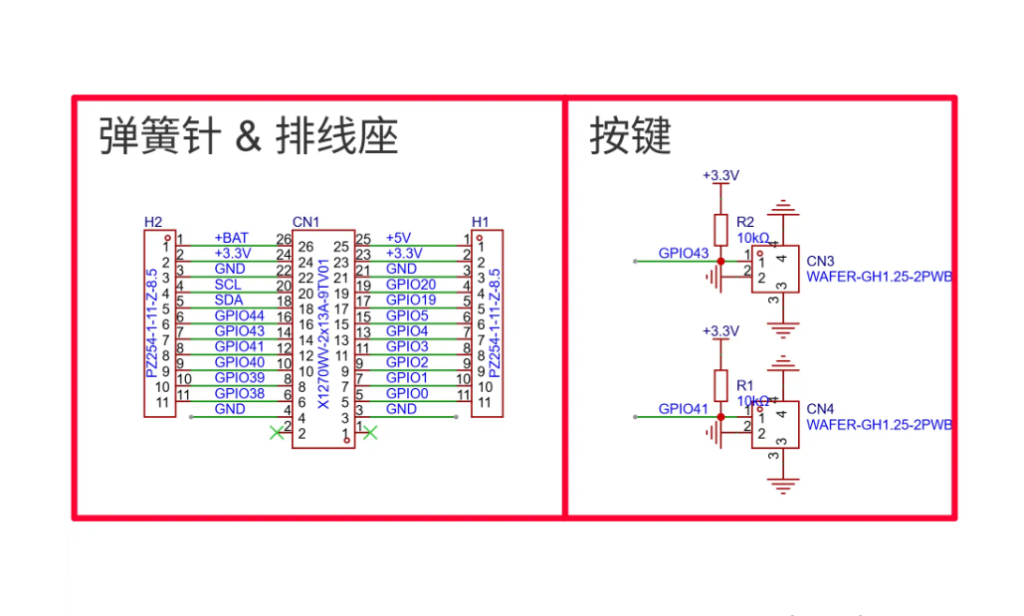

原理图

PCB

BOM

ID	Name	Designator	Footprint	Quantity	Manufacturer Part	Manufacturer	Supplier	Supplier Part
1	PZ254-1-11-Z-8.5	H1,H2	HDR-TH_11P-P2.54-V-M	2	PZ254-1-11-Z-8.5	HCTL(华灿天禄)	LCSC	C2894934
2	X1270WV-2x13A-9TV01	CN1	IDC-TH_X1270WV-2X13A-6TV01	1	X1270WV-2x13A-9TV01	XKB Connection(中国星坤)	LCSC	C2962229
3	WAFER-GH1.25-2PWB	CN3,CN4	CONN-TH_2P-P1.25_XUNPU_WAFER-GH1.25-2PWB	2	WAFER-GH1.25-2PWB	XUNPU(讯普)	LCSC	C3029377
4	10kΩ	R1,R2	R0805	2	0805W8F1002T5E	UNI-ROYAL(厚声)	LCSC	C17414
